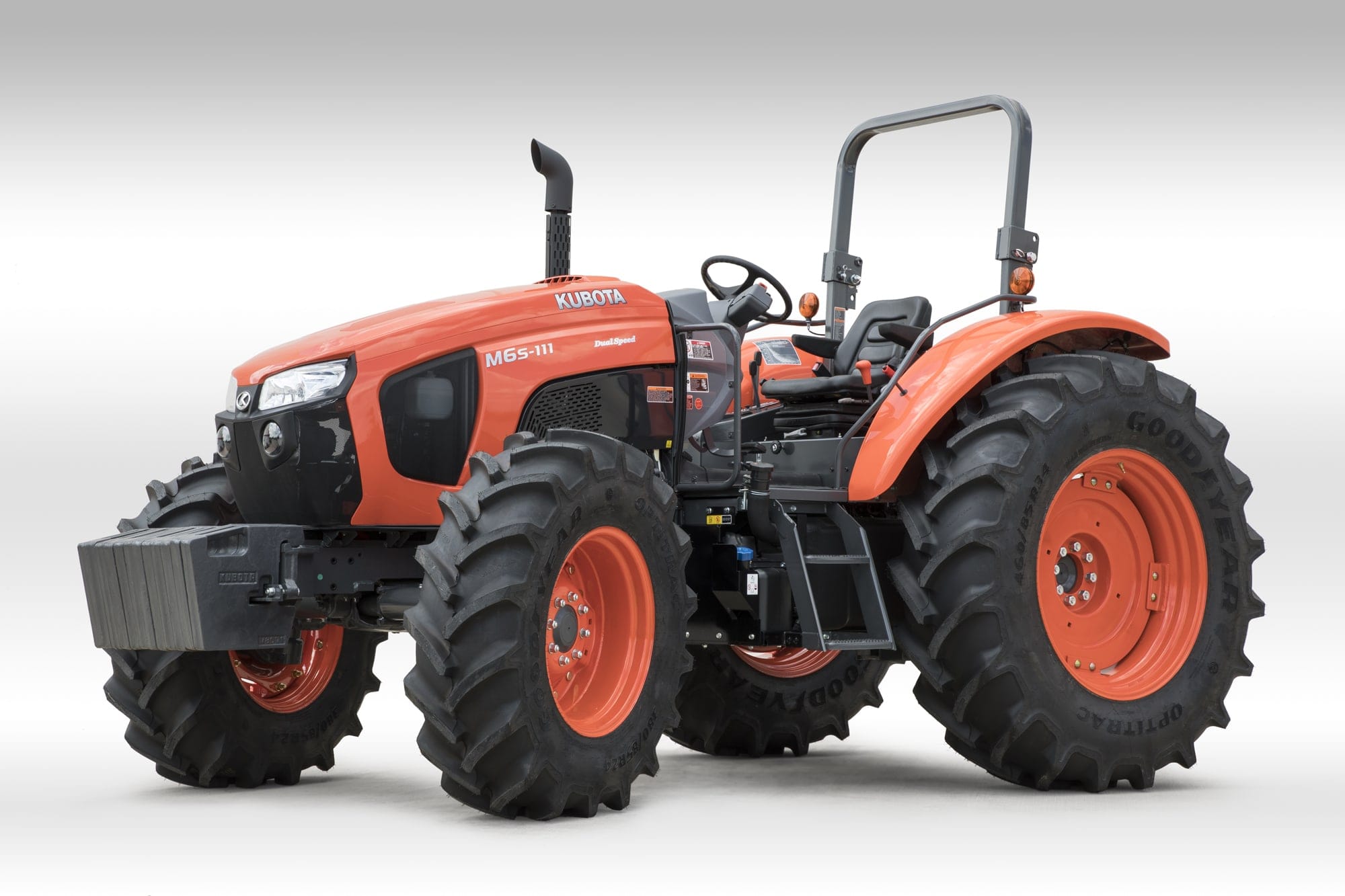

M6S-111 ROPS
UTILITY
Call for Pricing
The M6S-111 are value-minded, economy utility tractors built with the small farmer/rancher, property maintenance professional and municipalities in mind. Packed with Kubota quality horsepower and deluxe tractor features, the M6S-111 adds productivity and efficiency to any operation on a budget. #1 Selling Tractor Under 200 HP*
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Save with your 2024 Equine Membership* on Compact/Utility AG Tractors, Turf and RTV Products!
2024 EQUINE PURCHASE PROGRAM
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
Orange Plus Instant Rebate
Orange Plus Instant Rebate
Kubota Diesel Engines
Proven, Powerful, and Reliable
The M6S-111 tractor line-up is powered by Kubota’s proven and reliable V3800, 3.8 liter, turbocharged, Tier 4 Final diesel engine. With 105* net engine HP and 95** PTO HP, M6S-111 tractors are well suited to power many of Kubota’s field tested hay tools and Land Pride mowers and attachments.
* SAE J1349 rating @ Rated Engine RPM
** OECD Code 2 rating @ Rated Engine RPM
Ergonomic Operators Station
The M6S-111 cab has been ergonomically designed for functionality and operator comfort. With well laid out controls and excellent visibility, the operator will be comfortable and well aware of the area around the tractor during operation.
Kubota Exclusive Swing-Shift and Swing-Shift Plus Transmissions
When finding the right speed for your operation, the M6S-111 comes ready for the task at hand. With the 16 speed Swing-Shift or 32 speed Swing-Shift Plus transmissions, you’ll always be able to find the right gear. The Kubota exclusive Swing-Shift transmission offers 8 or 16 speeds in both high and low ranges, eliminating the need to change ranges while you are working in the field or traveling down the road. Kubota Swing-Shift and Swing-Shift Plus Transmission’s shift handles have an integrated “de-clutch” button to allow the operator to shift gears without using the foot pedal clutch, reducing operator fatigue throughout the work day.
Bevel Gear Front Axle
Kubota’s bevel gear front axle has always been a leader in tight turning and excellent clearance under the tractor. This holds true with the bevel gear axle on the M6S-111 4WD models, as well. With 55° of turning angle and almost 17” of ground clearance, the M6S-111 is ready to tackle the tight confines of a barnyard or tall windrows in a hay field.
Specifications
Driveline Type
Gross Engine H P
Hydraulic Flow
Loader Lift Capacity
Operator Platform
P T O
P T O H P
Standard Transmission
Three Point Linkage Capacity
Three Point Linkage Type
Driveline Type
2WD / 4WD
Gross Engine H P
114.1
Hydraulic Flow
17.6
Loader Lift Capacity
Power: 4299 (1950 kg), Height: 4178 (1895 kg)
Operator Platform
ROPS
P T O
Standard: 540/1000 rpm
P T O H P
95
Standard Transmission
Standard:16F/16R, 32F/32R, Optional: 24F/24R, 48F/48R
Three Point Linkage Capacity
3858, 5732 with 2 assist cylinders (option)
Three Point Linkage Type
Category II
